Feature:
1. Stainless steel shackle
2. Stainless steel body
3. Nickle_plated brass keys
4. Stainless steel spring
5. Brass pin
6. Brass cylinder
7. Shackle double locking

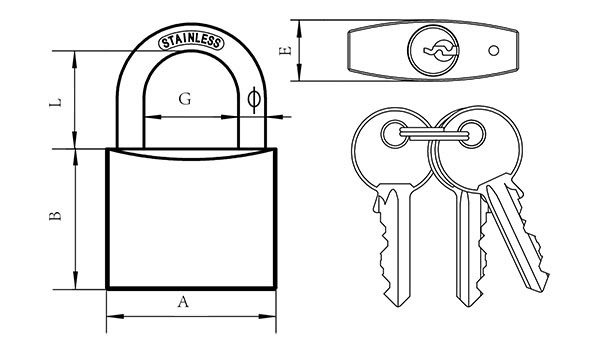

| Size/Code | A | B | E | ф | L | L1 | L2 | G |
| 30mm | 30 | 28 | 13 | 5.1 | 17±1 | 33±1 | 64±1 | 15.5 |
| 40mm | 40 | 33 | 14.5 | 6.3 | 22±1 | 42±1 | 70±1 | 22 |
| 50mm | 50 | 40.5 | 16.8 | 8 | 29.5±1 | 56.5±1 | 76±1 | 27.5 |
| 60mm | 60 | 42.5 | 18.5 | 9.5 | 37.5±1 | 61±1 | 83±1 | 32 |
