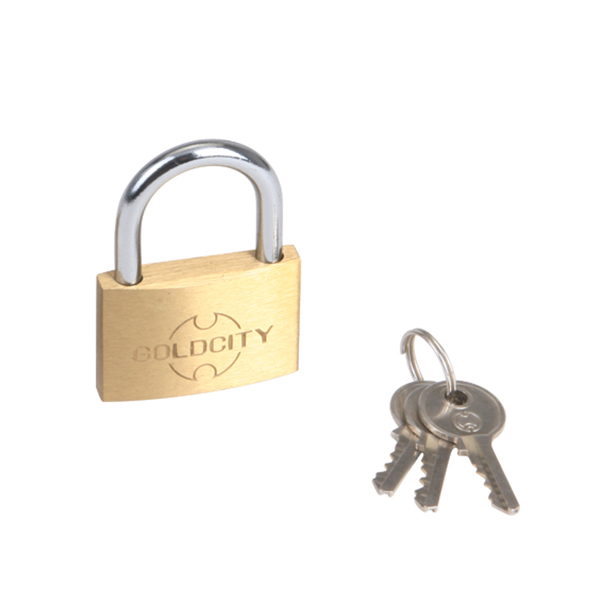

BRASS PADLOCK THIN TYPE
Model：NO.L93020B-L93060B

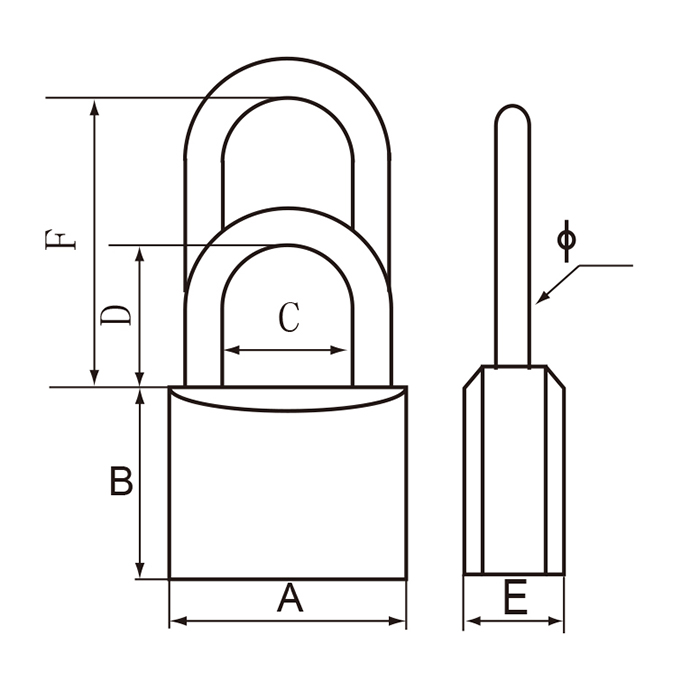

| Art.NO. | Size/Code | A | B | C | D | E | F | ф |
| 93020B | 20mm | 20 | 16.5 | 11 | 12 | 8.3 | 36 | 2.8 |
| 93025B | 25mm | 25 | 17.8 | 13.5 | 13 | 8.3 | 47 | 3.5 |
| 93030B | 30mm | 30 | 21.5 | 16 | 17 | 9 | 56 | 4.5 |
| 93035B | 35mm | 35 | 23.5 | 20 | 19 | 9.5 | 61 | 4.5 |
| 93040B | 40mm | 40 | 26.5 | 22.5 | 22 | 10 | 66 | 5.5 |
| 93045B | 45mm | 45 | 28.5 | 26.5 | 25 | 11 | 70 | 5.5 |
| 93050B | 50mm | 50 | 32 | 30 | 28 | 12 | 76 | 6.3 |
| 93060B | 60mm | 60 | 36 | 34 | 31 | 13 | 83 | 7.6 |
