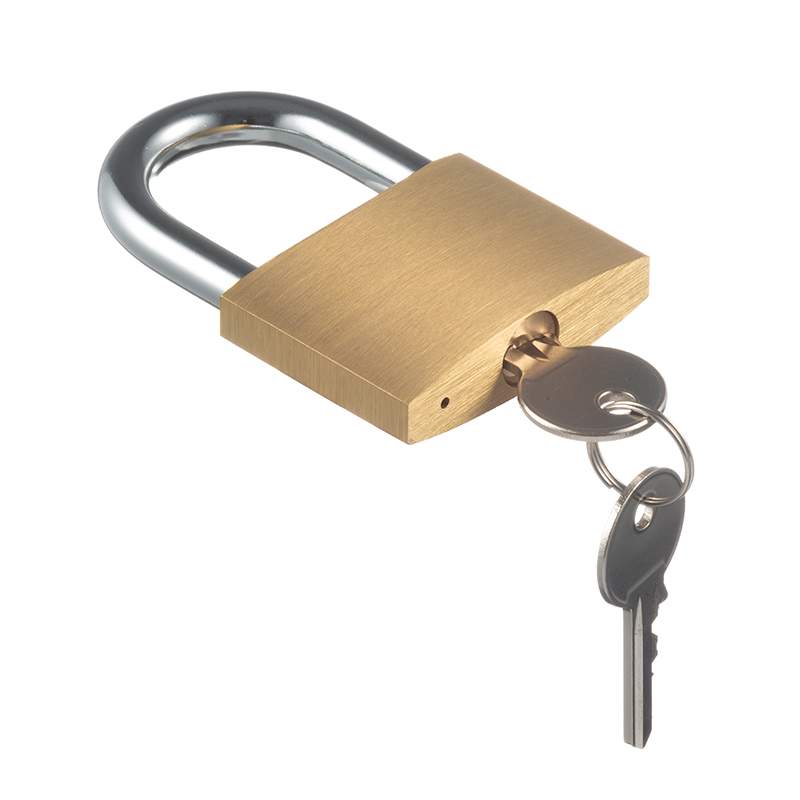

BRASS PADLOCK MEDIUM TYPE
Model：NO.S20L-S70L

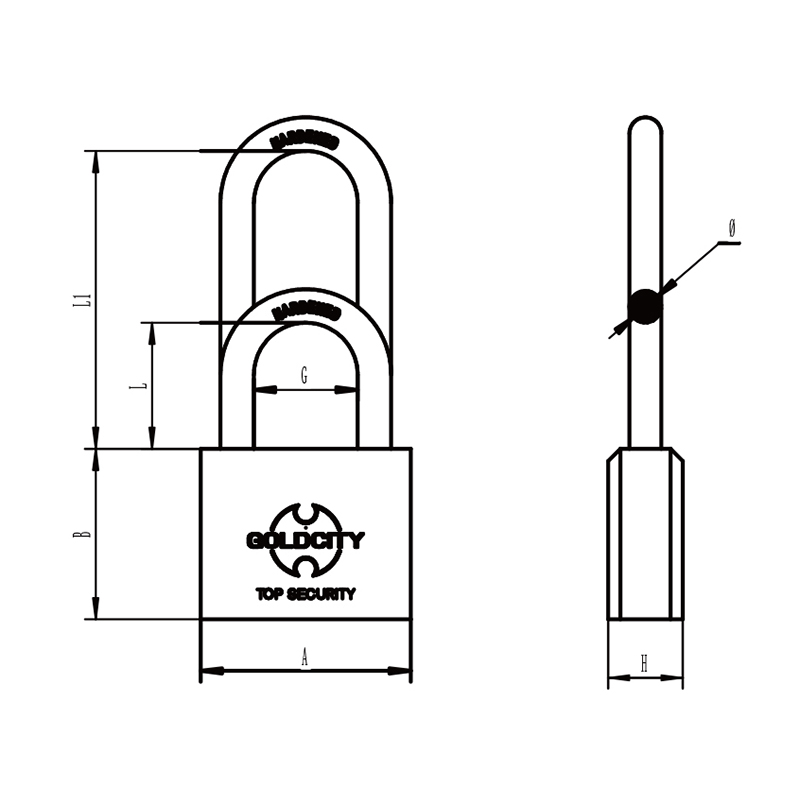

| Art.NO. | Size/Code | A | B | G | H | ф | L | L1 |
| S20L | 20mm | 20 | 18.5 | 10 | 9 | 3.5 | 13 | 22 |
| S25L | 25mm | 25 | 23 | 13.5 | 10 | 4.2 | 15.5 | 27 |
| S30L | 30mm | 29.5 | 27 | 15 | 11 | 5.15 | 16.5 | 33 |
| S35L | 35mm | 34 | 30.5 | 19 | 12.2 | 5.5 | 20.5 | |
| S40L | 40mm | 39 | 32 | 22 | 13 | 6.3 | 24 | 42 |
| S45L | 45mm | 44 | 36.5 | 24.8 | 13.8 | 7.2 | 24.5 | |
| S50L | 50mm | 49 | 37 | 27.5 | 15 | 8 | 30 | 50 |
| S60L | 60mm | 58 | 42 | 32 | 15.5 | 9.5 | 39 | 56 |
