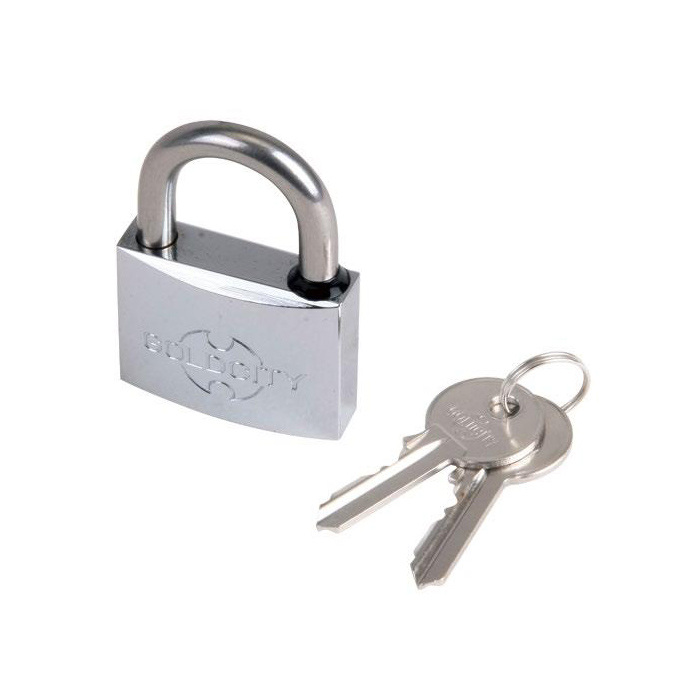

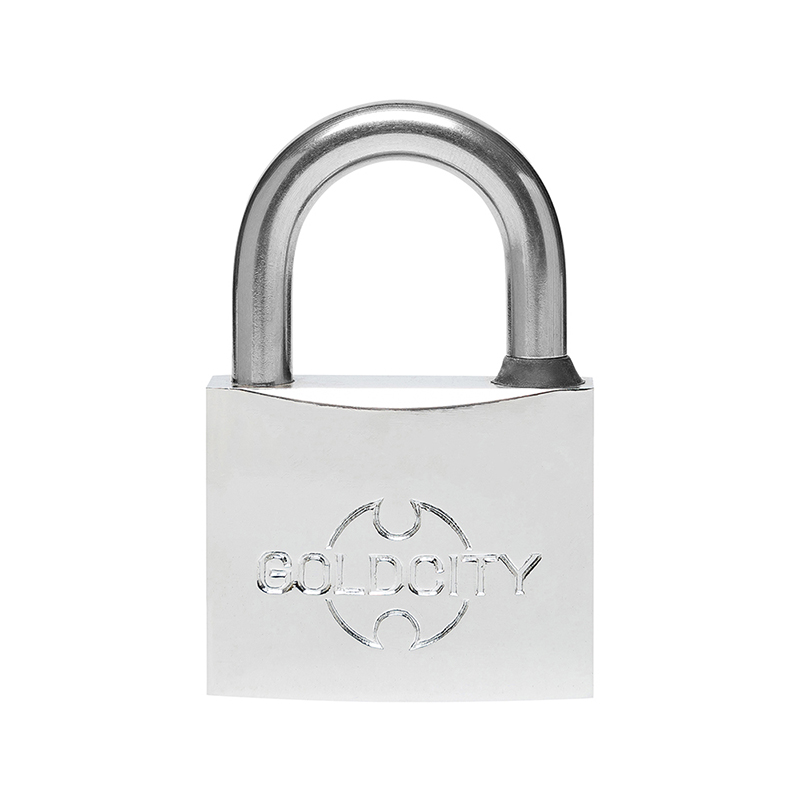

MARINE TYPE BRASS PADLOCK WITH STAINLESS STEEL SHACKLE
Model：NO.9230-9260
| Art.NO. | Size(mm) | Doz/CTN | CTN SIZE(cm) | N.W.(kg) | G.W.(kg) |
| 9230 | 30 | 20 | 31X29X13.5 | 21.5 | 23 |
| 9240 | 40 | 10 | 36X19X14.0 | 18.5 | 20 |
| 9250 | 50 | 5 | 42X15X13.0 | 16.5 | 18 |
| 9260 | 60 | 5 | 35X33X12.0 | 23.5 | 25 |
Feature:
1. Stainless steel shackle
2. Chromed brass body
3. Nickle_plated brass keys
4. Stainless steel spring
5. Brass pin
6. Nickle_plated brass cylinder
7. Shackle double locking

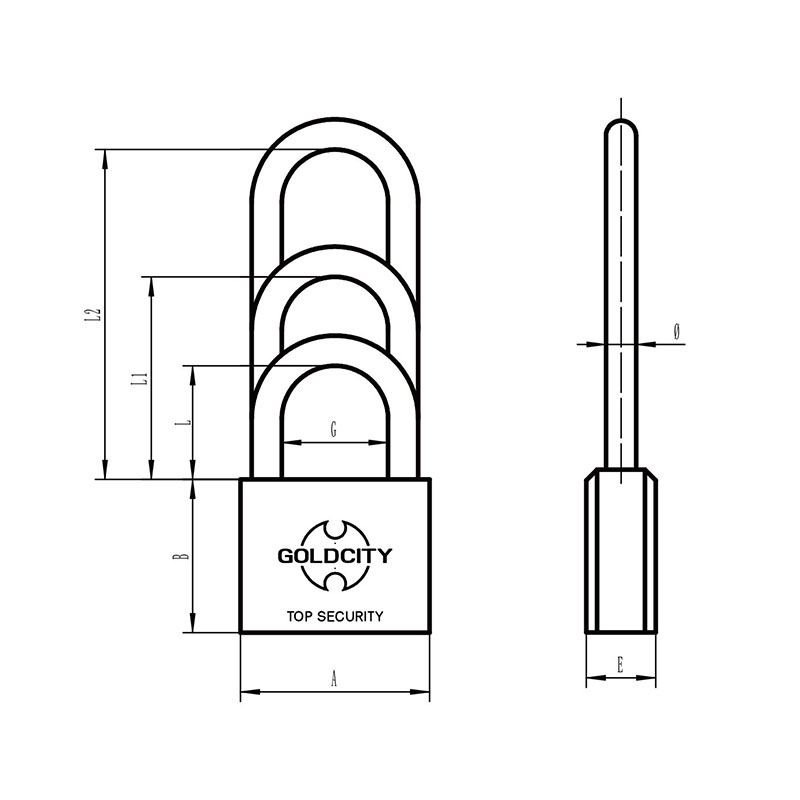

| Size/Code | A | B | E | ф | L | L1 | L2 | G |
| 30mm | 30 | 28 | 13 | 5.1 | 17±1 | 33±1 | 64±1 | 15.5 |
| 40mm | 40 | 33 | 14.5 | 6.3 | 22±1 | 42±1 | 70±1 | 22 |
| 50mm | 50 | 40.5 | 16.8 | 8 | 29.5±1 | 56.5±1 | 76±1 | 27.5 |
| 60mm | 60 | 42.5 | 18.5 | 9.5 | 37.5±1 | 61±1 | 83±1 | 32 |
