Products

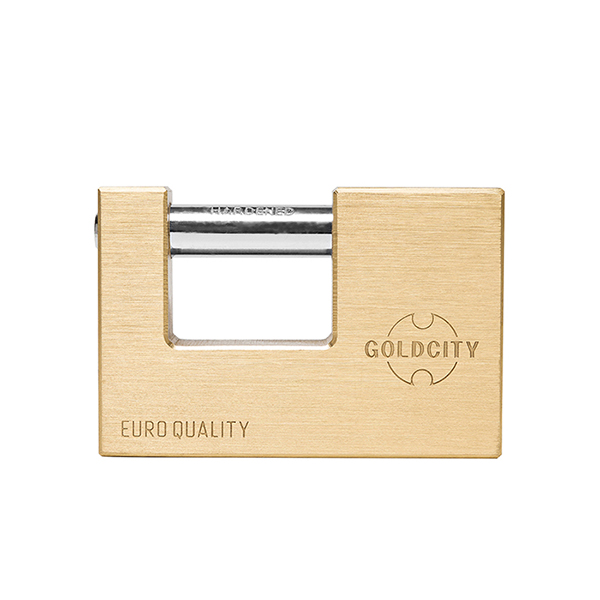

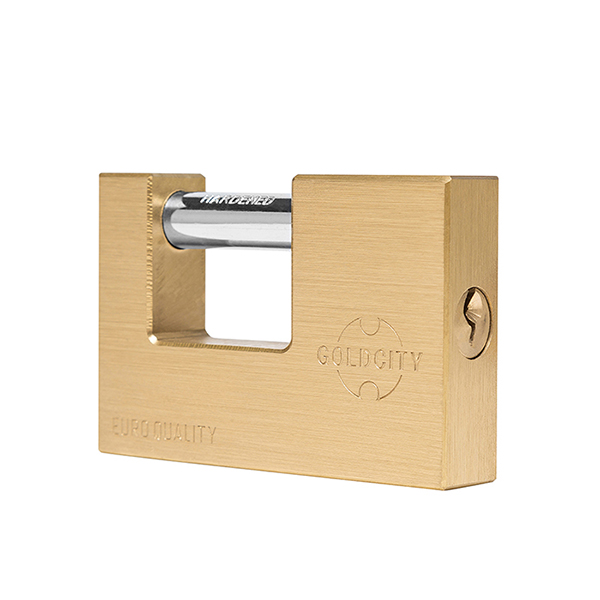

SOLID BRASS RECTANGULAR PADLOCK
Model：NO.9850-9890
| Art.NO. | Size(mm) | Doz/CTN | CTN SIZE(cm) | N.W.(kg) | G.W.(kg) |
| 9850 | 50 | 10 | 33.0×33.0×11.5 | 23.5 | 25 |
| 9860 | 60 | 5 | 30.0×17.5×16.0 | 17 | 18.5 |
| 9870 | 70 | 5 | 30.0×18.5×17.0 | 20 | 21 |
| 9875 | 75 | 4 | 34.0×19.0×13.0 | 21 | 22.5 |
| 9890 | 90 | 3 | 31.0×20.0×15.0 | 23 | 24.5 |

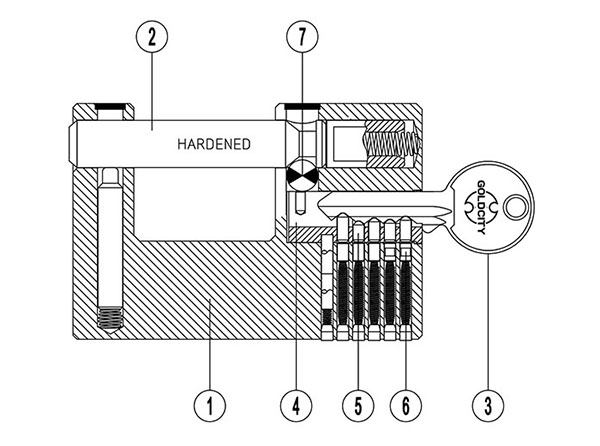

Feature:
1. Solid brass body
2. Hardened and chromed steel shackle
3. Two nickel plated brass key
4. Brass cylinder
5. Stainless Steel spring
6. Brass pin
7. Steel ball

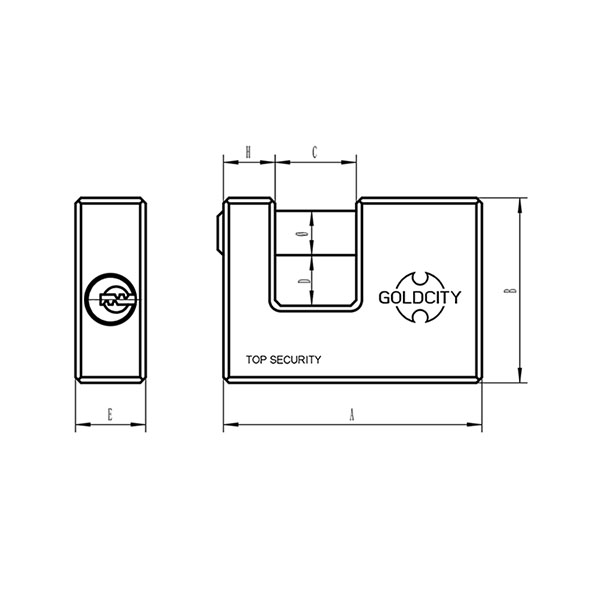

| Size/Code | A | B | C | D | E | ф |
| 50mm | 50 | 38 | 15 | 12.5 | 15 | 8 |
| 60mm | 60 | 45 | 17 | 14 | 15.5 | 10 |
| 70mm | 70 | 48 | 22 | 14 | 17 | 11 |
| 75mm | 76.2 | 48 | 24 | 14 | 18 | 11 |
| 90mm | 89 | 60 | 36 | 19 | 19 | 12 |
