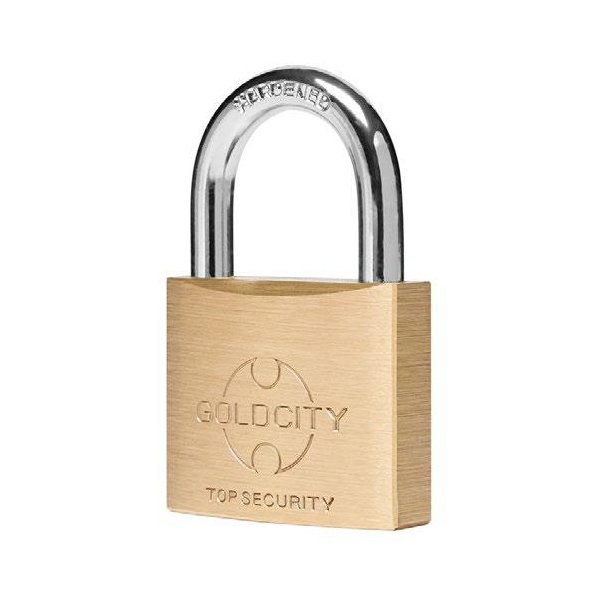

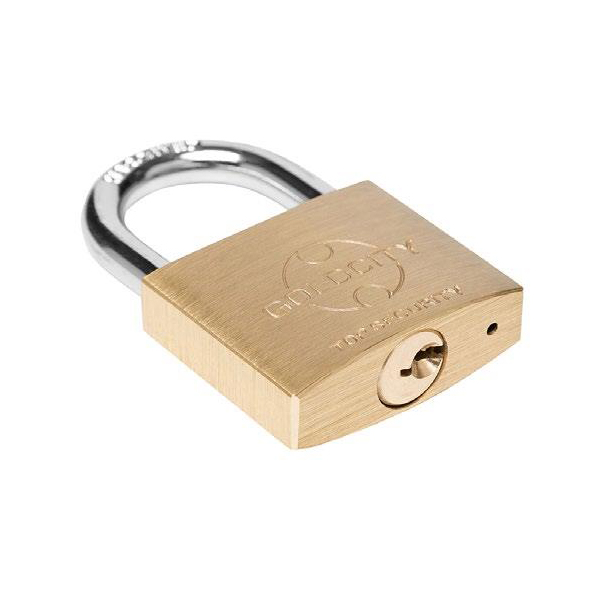

BRASS PADLOCK HEAVY DUTY TYPE
Model ：NO.HL400A-HL407A
| Art.NO. | Size(mm) | Doz/CTN | CTN SIZE(cm) | N.W.(kg) | G.W.(kg) |
| HL400A | 15 | 50 | 27X26.5X19.5 | 16.5 | 18 |
| HL401A | 20 | 50 | 28X27.0X19.0 | 21.5 | 23 |
| HL402A | 25 | 25 | 32X20.5X17.0 | 18.5 | 19.5 |
| HL403A | 30 | 20 | 31X29.0X13.5 | 21.5 | 23 |
| HL404A | 40 | 10 | 36X19.0X14.0 | 18.5 | 20 |
| HL405A | 50 | 5 | 42X15.0X13.0 | 16.5 | 18 |
| HL406A | 60 | 5 | 35X33.0X12.0 | 23.5 | 25 |
| HL407A | 70 | 5 | 40X33.5X13.0 | 33.5 | 35 |

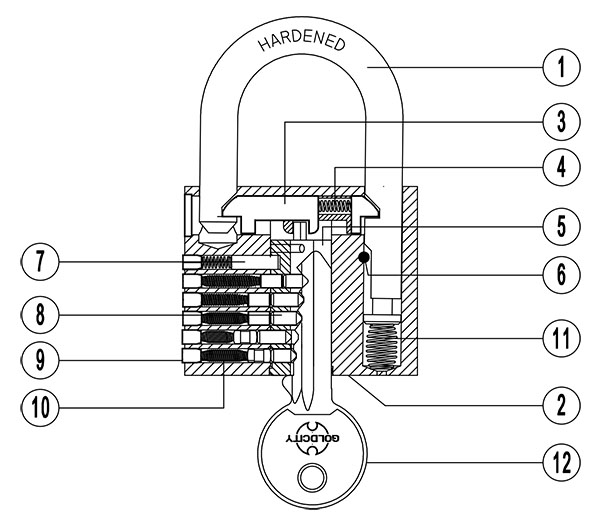

Feature:
1. Hardened steel shackle
2. Solid brass body
3. Shackle double locking
4. Rustproof steel loading spring
5. Water-proof joint
6. Brass cylinder
7. Cylinder retaining pin
8. Combination pin
9. Combination counter pin
10. Combination pin springs
11. Rust-proof shackle spring
12. Nickle-plated brass keys

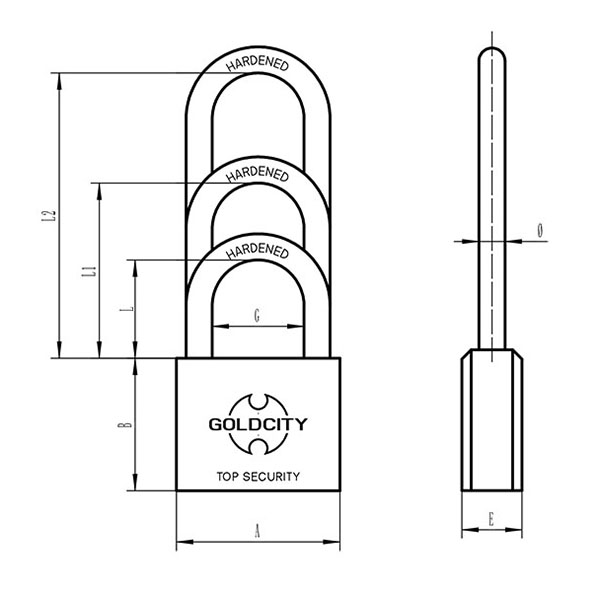

| Size/Code | A | B | E | ф | L | L1 | L2 | G |
| 15mm | 17 | 18 | 10 | 3 | 12 | / | / | 9 |
| 20mm | 21 | 20 | 10 | 3.5 | 13 | 22 | 36 | 10 |
| 25mm | 25 | 24.5 | 11.8 | 4.2 | 15 | 27 | 47 | 13 |
| 30mm | 30 | 28 | 13 | 5.1 | 17 | 33 | 64 | 15.5 |
| 35mm | 35 | 33 | 13 | 5.5 | 20.5 | / | / | 19 |
| 40mm | 40 | 33.6 | 14.5 | 6.3 | 23 | 42 | 70 | 22 |
| 45mm | 45 | 38 | 15 | 7.2 | 25 | / | / | 25 |
| 50mm | 50 | 40.5 | 16.8 | 8 | 29.5 | 56.5 | 76 | 27.5 |
| 60mm | 60 | 42.5 | 18.5 | 9.5 | 37.5 | 61 | 83 | 32 |
| 70mm | 70 | 48 | 20 | 11 | 41 | / | / | 40 |
